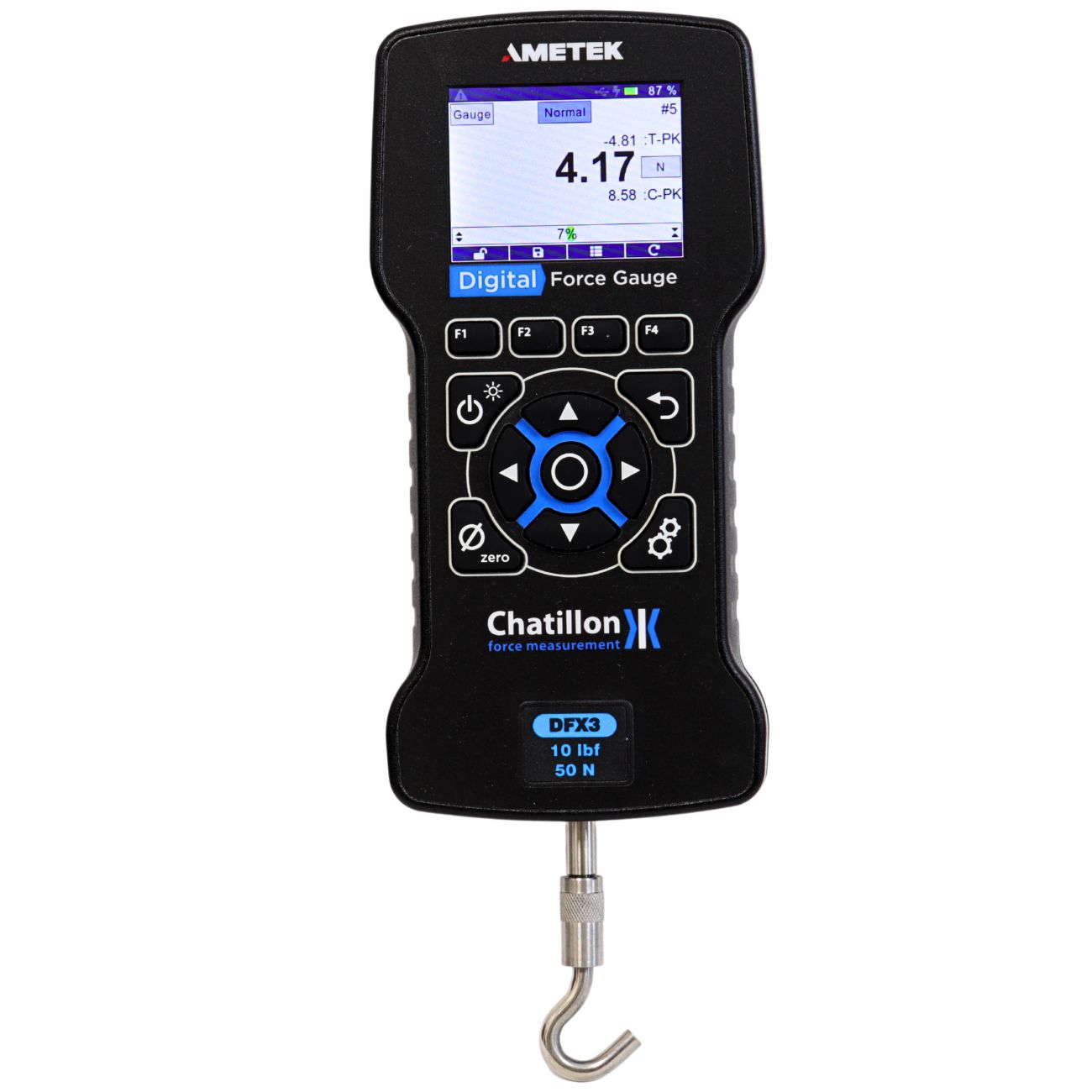

DFX3 Series - Digital Force Gauge

DFX3 Functions and Features

Test Results – Clear and Accurate

The DFX3 is designed for fast, easy force measurements with on-screen results—ideal for routine production testing.

• Live Force Readings in tension or compression, displayed with precision and unit of measure.
• Peak Force Capture automatically detects and holds the highest value observed during the test – ideal for break or limit testing.
• Timestamped Results ensure each reading is linked to a precise moment, simplifying audit trails and quality reporting.
• On-Gauge Storage of up to 100 readings.

Battery Life – Built for Long Workdays

• The extraordinarily long battery life of the DFX3 reduces the need for continuous recharging.
• The dimming functionality of the DFX3 provides a battery life of 30 hours when the dimming is off, while turning the dimming on will provide a full 40 hours of battery life.

Accessories – Ready for Every Application

The gauge has either #10-32 or 5/16-18 male threads, depending on the gauge capacity. As standard, the gauge is supplied with Flat adapter and Hook. A wide assortment of optional accessories are available:

• Extension rods, pointed, and chisel tips, notch adapters.
• Eye-end adapters, pistol grips.
• Test stand adapters for MT and TT series.

Quick accessory changes make the DFX3 adaptable for virtually any handheld or fixture-mounted test setup.

Intuitive Operation with Smart Interface

The DFX3 features a single-layer user interface — no complex menu diving. Setup and testing are fast and frustration-free:

• Dedicated function keys adapt to the operation being performed.
• Large, full-color LCD offers clear visuals of results, modes, and system status.
• Display can be inverted for overhead or inverted mounting.

Users can operate confidently with minimal training, improving productivity and reducing operator error.

Dependable, Accurate Measurements

At the heart of the DFX3 is an integral loadcell sensor engineered for repeatable, high-accuracy results.

With mechanical overload protection up to 150% of full scale and advanced internal monitoring, the DFX3 not only measures force but also tracks overload history — a powerful tool for preventive maintenance and long-term reliability.

The dynamic color-coded load bar displays:

• Real-time force magnitude.
• Force direction (tension/compression)
• Overload warning as you approach capacity.
• These visual cues support safer, more controlled testing and reduce the risk of loadcell damage.
