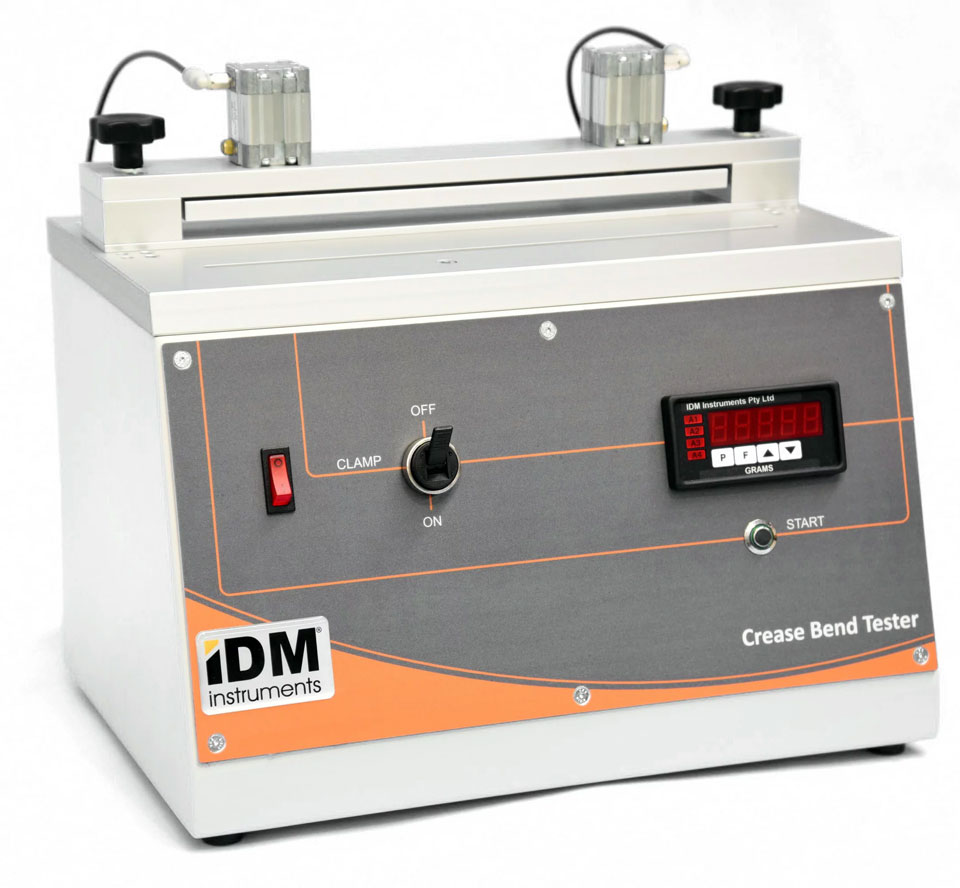

CREASE BEND TESTER

Category: Products / Packaging Testing

The Crease Bend Tester can measure the bending resistance of crease boards. This is at the time of folding them. Thus, it ensures box performance. Especially, boxes that are used for packaging.

It measures the maximum force required to bend the sample board. Corrugated converters use the Crease Bend Tester to aid in making adjustments to improve the quality. Thus ensuring the end user will have boxes that run effectively on their production line.

Crease Bend Tester

tags: board test, board test equipment, board test instruments, board tester, board testing, bending resistance test, bond tester, bond test, bond test equipment

Applications

  • Board
  • Corrugated Board
  • Cigarette manufacturing

Benefits

  • Easy to use
  • Fast results
  • Accurate

Features

  • Range of 0 – 10,000 x 1gf
  • Maximum Sample Width: 300mm
  • Digital display
  • Accuracy 1% FS
  • Pneumatic sample clamp
  • Motorised Load Bar
  • Adjustable folding distance
  • Peak Memory function
  • Optional RS 232
  • Air: 80 psi Maximum
  • Electrical: 220/240 VAC @ 50 HZ or 110 VAC @ 60 HZ
