Digital Precision Thickness Micrometer

Category: Products / Plastic & Film Testing

Product Code: IDM-D0011-M1

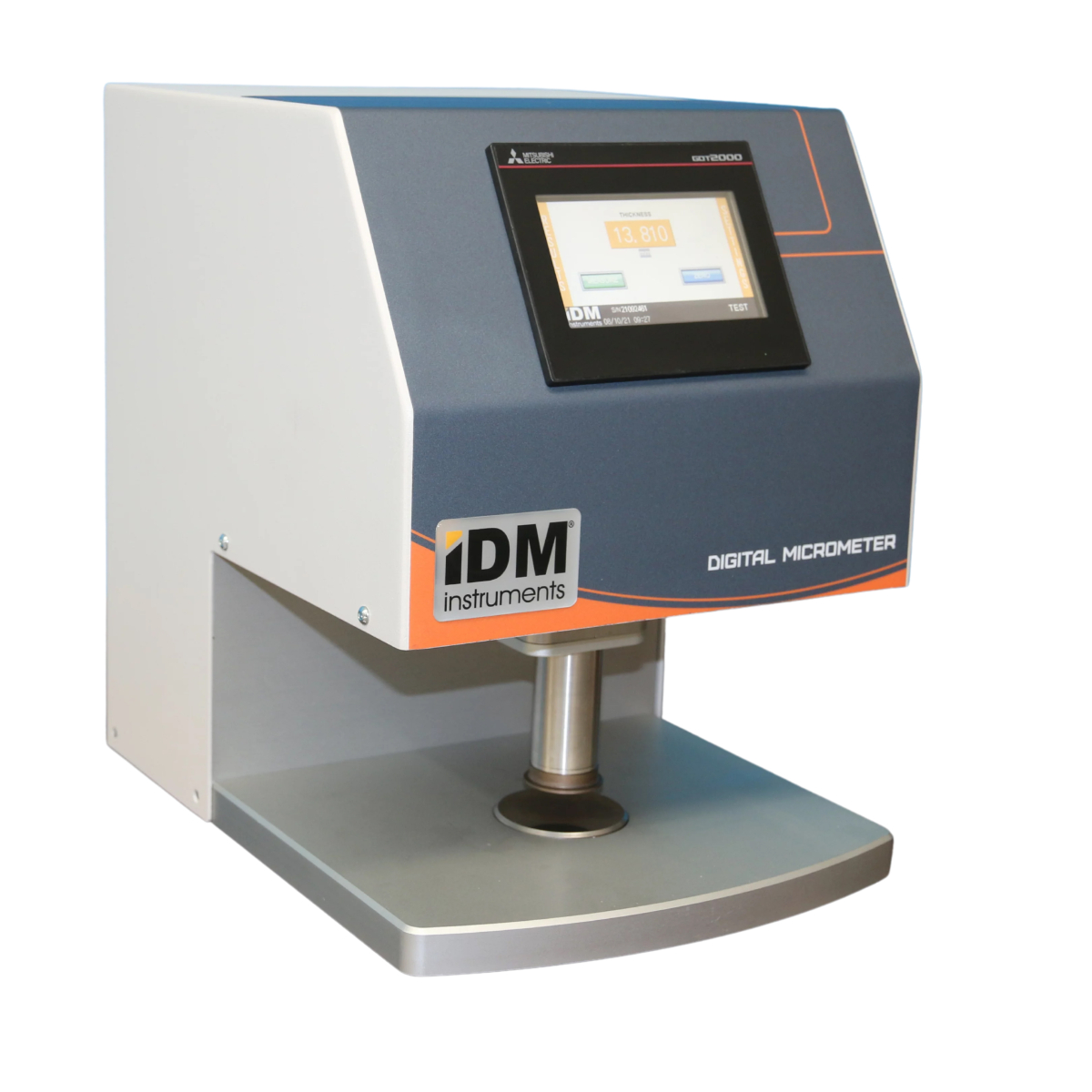

The Digital Precision Thickness Micrometer measures thickness of paper, tissue, paperboard, cartonboard and plastic. It automatically cycles up and down at the push of a button. Therefore, providing an accurate and repeatable thickness reading at the end of each cycle.

The machine has a robust design. It has two plane, parallel, circular pressure faces. Hence, this allows placing the sample between these.

The standard instrument comes with a measuring pressure of 2kPa. Also, the option of 20kPa, 50kpa or 100kPa. This is dependent on your application and requirements.

The pressure feet are easily interchangeable to allow for quick and precise testing every time.

Thickness Measurement Principle

The principle of the Digital Precision Thickness Micrometer is to measure the thickness of a single sheet of paper, paperboard, combined board, plastic, tissue, or a pack of sheets under a specific static load for a specified time. The Digital Micrometer is provided with two plane, parallel, circular pressure faces, between which the paper or board is placed for measurement. The pressure exerted between the pressure faces during the thickness measurement is 2kPa as standard, or optional 20 kPa, 50 kPa, or 100 kPa as an alternative. Other pressures are also available, dependent on customer specific applications. The two pressure faces form an integral part of the micrometer, such that one face is fixed (the anvil) and the other is moveable (pressure foot) in a perpendicular direction to the place of the fixed face. A circular region of 200mm² in area is subject to the sample during the measurement process. The lowering speed of the Digital Micrometer shall be 1 ± 0.1 mm/sec for the standard 2 kPa unit.

Test Specimens

Test pieces should be prepared and conditioned as per relevant standard. Specimens used should be free from creases, folds, cracks or other defects that could influence the results. Ten test specimens from each test unit shall be used for testing and evaluating. Specimens shall be cut to size of 40mm in its shortest dimension, and 120mm in its longest dimension. Test specimens shall be cut so that the longer dimension is across the machine direction.

Optional Models of Digital Precision Thickness Micrometer

1. Legacy model - 2 kPa

Pressure: 2kPa
Range: 0 -12mm
Resolution: 0.001mm
Accuracy: ± 0.001
Anvil: 55mm Ø
Pressure Foot: 35.7mm
Lowering Speed: 1 ± 0.1mm/ sec
Parallel: Better than 5um
RS232 Output

2. 20kPa Unit

Pressure: 20 kPa
Pressure Foot: 35.7 mm Ø
Lowering Speed: 1 ± 0.1 mm/sec

3. 50kPa Unit

Pressure: 50 kPa
Pressure Foot: 16 mm Ø
Lowering Speed: 0.8 ± 0.1 mm/sec

4. 100kPa Unit

Pressure: 100 kPa
Pressure Foot: 16 mm Ø
Lowering Speed: 1 ± 0.1 mm/sec

** Other pressures available on request

Applications

Paper
Plastic
Tissue
TSheeted material

Features

Pressure: 2kPa
Range: 0 -12mm
Resolution: 0.001mm
Accuracy: ± 0.001
Anvil: 55mm Ø
Pressure Foot: 35.7mm Ø
Lowering Speed: 1 ± 0.1mm/ sec
Parallel: Better than 5um
RS232
Electrical: 220/240 VAC @ 50 HZ or 110 VAC @ 60 HZ
Dimensions: 270mm x 250mm x 300mm
Weight: 18.5kg OPTIONS:
20kPa Unit: (35.7mm Ø Pressure Foot, 1 ± 0.1mm/ sec Lowering Speed)
50kPa Unit: (16mm Ø Pressure Foot, 0.8 ± 0.1mm/ sec Lowering Speed)
100kPa Unit: (16mm Ø Pressure Foot, 1 ± 0.1mm/ sec Lowering Speed)
Other pressures are available upon request

Benefits

Easy to use
Fast results
Accurate

Standards

AS1301.426s
BS 7387
ISO 534: 1988
TAPPI T 411
ASTM D645
ISO 3034
FEFCO No.3
SCAN P31
