Foam Compression Tester

Category: Products / Foam & Mattress Testing

The Foam Compression Tester uses deflection force on the flexible cellular polyurethane. This instrument allows performing the ILD or IFD of flexible cellular polyurethane. Which is a common test as per ASTM, ISO, AS, BS international standards including ASTM D3574.

This instrument offers a variety of software features that allow the programming of many parameters. This is because it uses our Universal Tester program. This software package allows the operator to conduct a large range of tests with an almost limitless array of test parameters. And displays test information when used with compatible PC Test Configurations. Thus, the procedure is fully automatic.

Run a test easily. Firstly, enter test scripts and operating parameters in the Configuration Panel. This allows entering a large variety of value types. Some of them include test type, sample piece, sample size, a standard reference. This machine also allows saving these values. Thus, retaining the results.

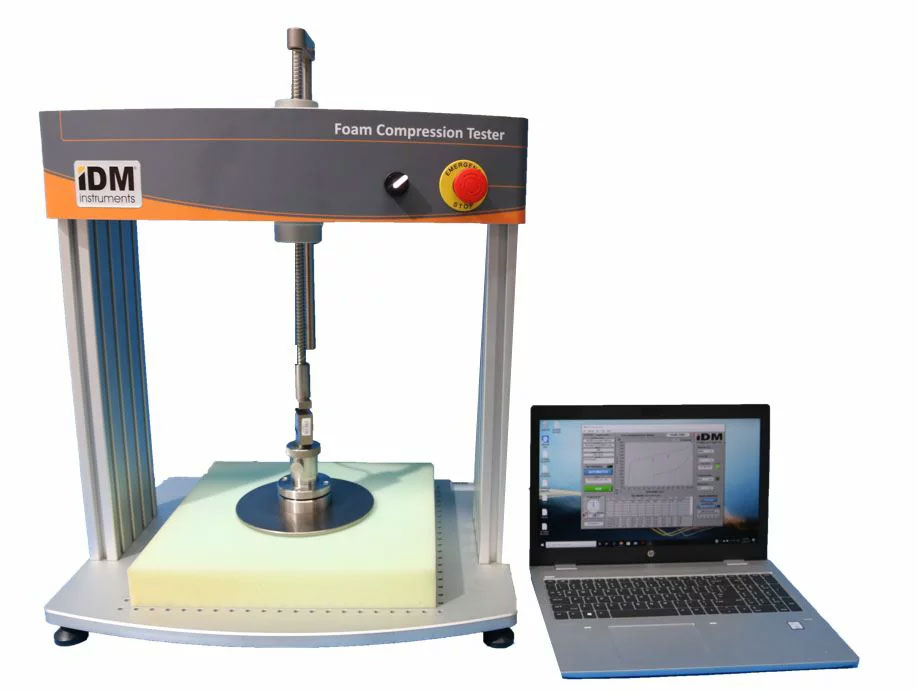

F0028 - Foam Compression Tester features

Loading System – closed loop micro computer which drives a ball screw and nut for its vertical movement.
Load auto-zeroing
Safety function for overloading provided
Test area of 500mm wide and not restricted at front and rear
PC supplied (with 19” flat screen monitor)

foam-compression-tester

Foam Compression Testing Process

The testing operation is divided into three discrete parts:

Entering the System Settings and Test Configurable Requirements
The System Settings are entered during the installation of the equipment and should not have to be changed. The Test Configuration is prepared for each test sample type, and only an experienced operator should only undertake this procedure.

Conducting the Tests
This procedure is fully automated. The operator will be requested to mount a test sample, and to remove it when the test is completed, when conducting multiple tests. A series of one or more tests are usually performed on a particular material to achieve a statistical comparison.

Reporting the Results
When a series of tests is complete, a test report can be generated on a printer.

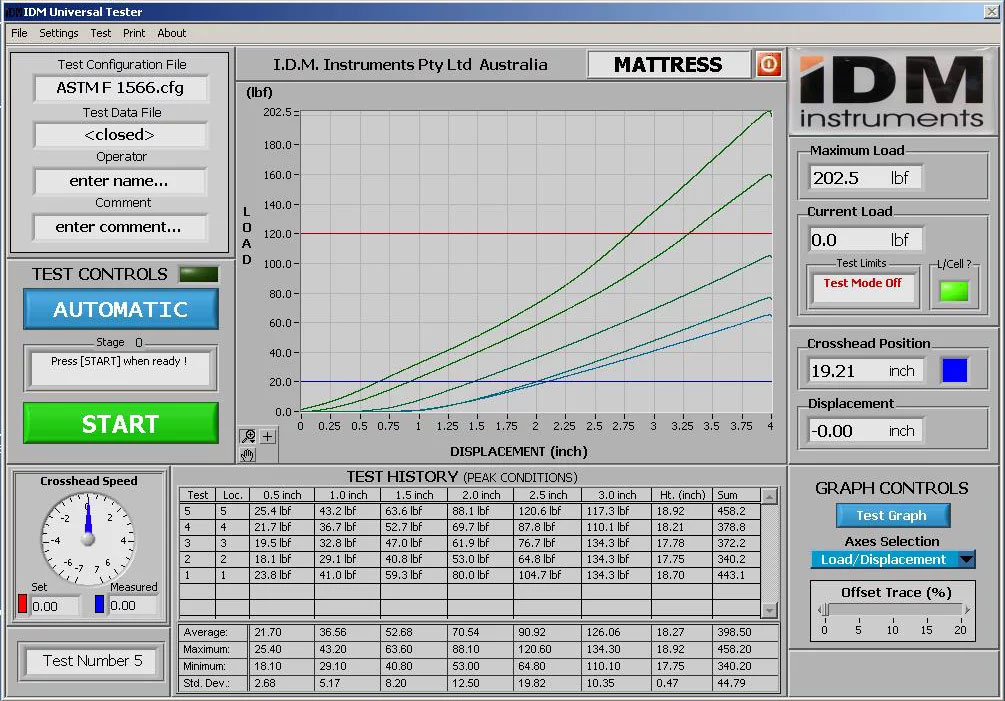

Foam Compression Software

The Software Program for the Foam Compression Tester is automatic. Thus, after programming the Test Configuration menu, press the “Start” button. This will start the test. The results of the test are displayed on the PC in real-time. Allowing printing or saving them for a later date.

foam-compression-tester-01

Data Sampling is adjustable from 1-200,000Hz
Position or Load control
Test parameters displayed with graph simultaneously.
Real time graphic display of data
Selectable graphical display presentation
Data can be sent to Excel
Out of range stop
Auto return after a test is selected
Calibration File to calibrate the instrument
Statistical analysis
Printable Reports
Windows based software
Overlay display of data curve possible during test
Test Methods programmable
Other test methods programmable by the operator.
Cyclic testing with data recording during cycle

Optional Items

Swivel Platen: 322 ± 2cm² (8” Ø)
Fixed Platen: 322 ± 2cm² (8” Ø)
Custom platen fixtures available on request
Custom size indentor available on request
Load Cell
Test area width: 450mm, 750mm, 1,000mm

tags: bedding test, bedding test equipment, bedding test instruments, mattress quality test, mattress durability tester, foam test machines, foam compression test, foam test, foam rolling test, foam Iso tester

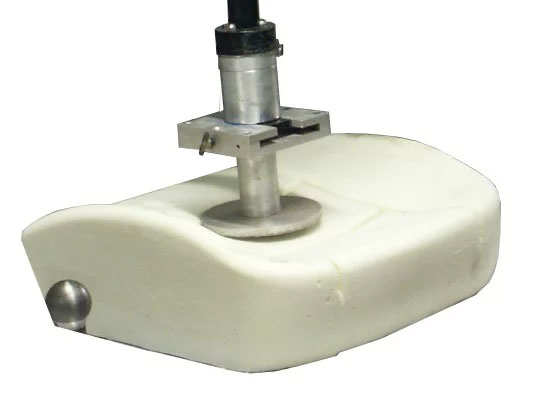

foam-compression-tester-02

Applications

Flexible cellular polyurethane
Latex foam
Rubber Foam
Carpet underlay
Foam components

Standards

AS 2282.8 - Methods of testing flexible cellular polyurethane Determination of force deflection
AS 2281 - Flexible cellular polyurethane for seat cushioning and bedding
ASTM D3574 - Standard Test Methods for Flexible Cellular Materials—Slab, Bonded, and Molded Urethane Foams
ISO 3386: 1984 - Polymeric materials, cellular flexible — Determination of stress-strain characteristic in compression — Part 2: High density materials
GB 10807 - Flexible cellular polymeric materials Determination of hardness (indentation technique)
JIS K 6400 - Test Methods for Flexible Polyurethane Foam

Benefits

5 pre-programmed testing procedures
Bench top operation
Printable reports
Easy to use

Features

Loading System – closed loop micro computer which drives a ball screw and nut for its vertical movement.
Load Cell Range: 0-2224N x 0.1N ±0.5%FS
Travel (mm) approx.: 200mm x 0.1mm ±1%FS
Speed (mm/min) 1 to 500 mm/min
Return Speed (mm/min) 500mm/min
Speed Accuracy better than +0.5% ±1%FS
Load auto-zeroing
Safety function for overloading provided
Max. Stroke Limiter upper/lower – 2 points
Compression platens area: 400mm x 400mm
322 ± 2cm² circular indentor foot (8” Ø)
Test area of 500mm wide and not restricted at front and rear
PC supplied (with 19” flat screen monitor)
Electrical: 220/240 VAC @ 50 HZ or 110 VAC @ 60 HZ
Dimensions: 600mm x 500mm x 500mm
Weight: 65kg
