Strip Cutter STR

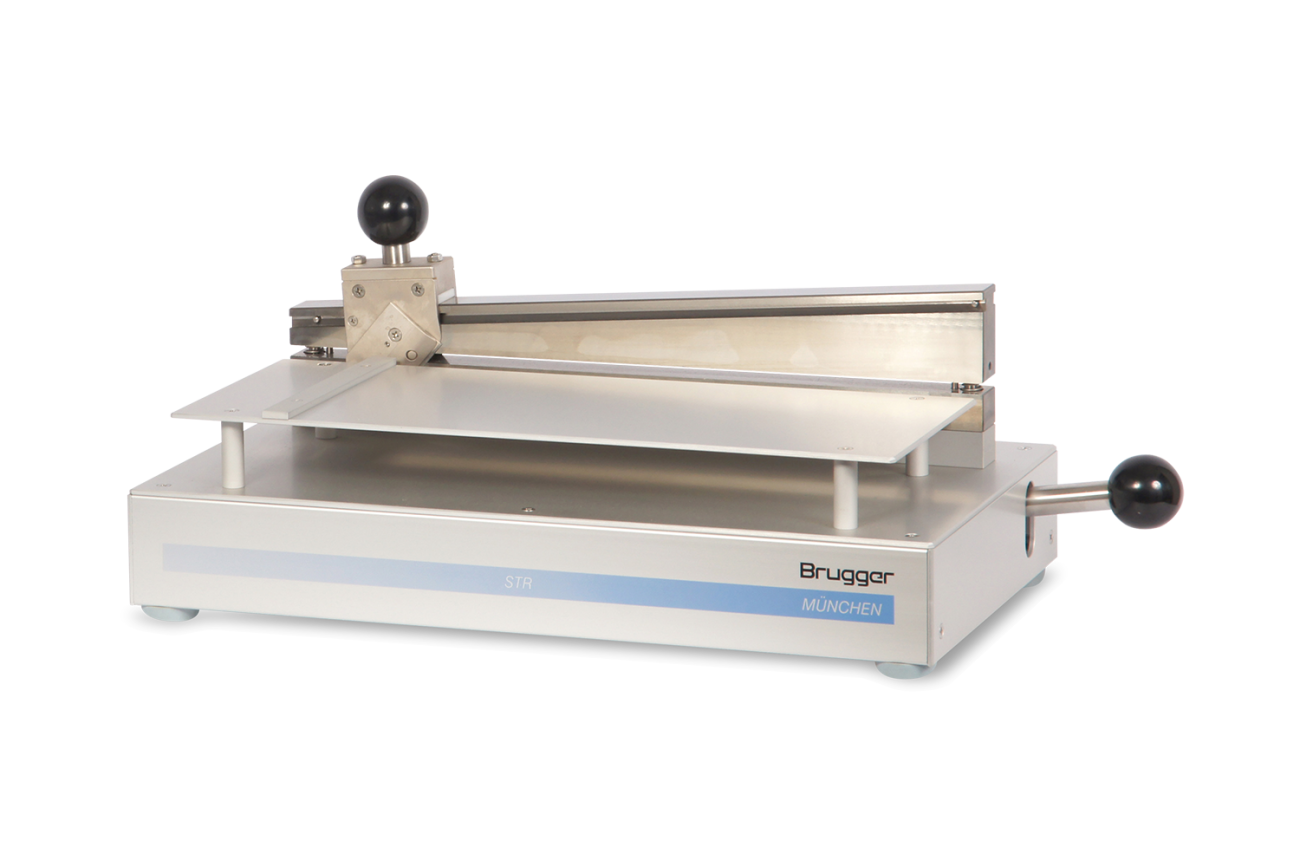

Detail_STR

Strip Cutter STR

… is used for a easy cutting to recieve exact strip-shaped specimen for tensile and sealing tests.


How it works

This precision tool may be used whenever strip-shaped specimen made of film, paper, cardboard and similar material is desired.

The standard STR has a 15 mm cutting width and a cutting length of up to 300 mm to produce customised specimen.

Examples are specimen needed for Hot Tack Tests and the determination of the bond strength, seam strength and tensile strength based on international standards.

Unlike the traditional cutting tools, the STR is equipped with removable industrial blades. You can replace worn blades in no time. There is no need for grinding the blades, which can be expensive and time-consuming.



Technical Details

Cutting width 15 mm, optionally 25.4 mm (1 inch) or widths in between
Cutting length 300 mm
Sample Thickness max 300 µm
Dimensions 530 x 260 x 220 mm
Weight 8 kg
Storage temperature 0 °C – 50 °C
Working temperature 15 °C – 35 °C
Relative humidity max. 80 %, non-condensing
Standard ISO 527 3 – Plastics – Determination of tensile properties
Required Accessories Industrial Blades
