Universal Tensile Tester VNG-E

Category: Products / Brugger Feinmechanik

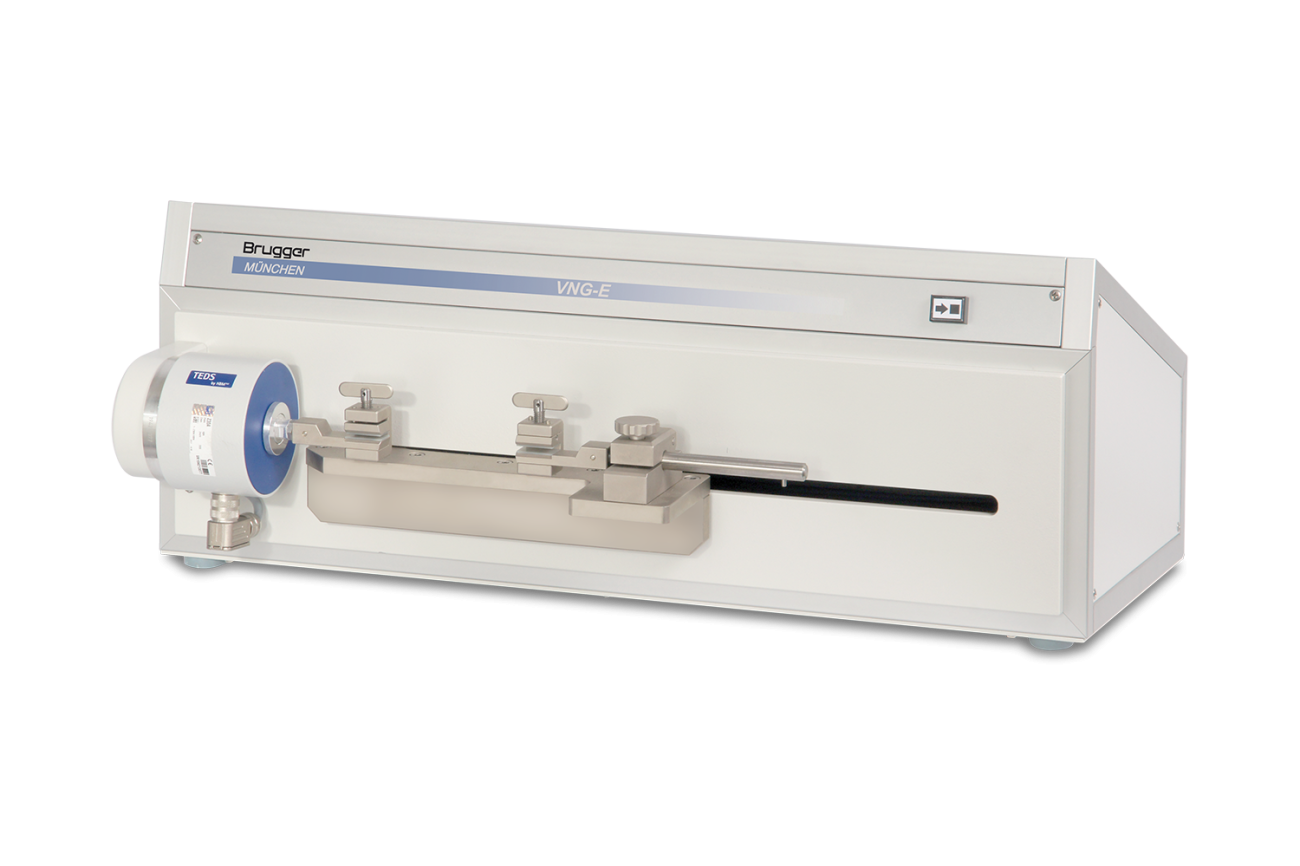

Detail_VNG-E

Universal Tensile Tester VNG-E

… is especially designed for testing films. This tester is used to determine the bond strength, seam strength and the friction of packaging materials.

  • Tensile testing for films
  • Control over PC
  • Incl. evaluation software

How it works

This compact universal tester is especially designed for testing flexible materials, such as paper or plastic films, as well as laminated materials produced therewith. You can use a single device to determine all relevant material properties.

This tensile-testing machine has primarily been developed to determine the bond strength, seam strength and the slip of packaging materials. The software allows you to store your results to a database for documentation purposes. Standard film strips for testing the bond strength and seam strength as well as tensile strength may be prepared with our Strip Cutter (STR) according to applicable industry standards.



The software allows you to control the following tasks:

  • Setting parameters for different test procedures
  • Starting and exiting of different test procedures
  • Viewing a graphical representation of the test procedures
  • Printing charts with the test graph
  • Saving your results in Microsoft Access databases
  • Retrieving data from previous tests


Technical Details

Mechanism stepper motor
Load cell 100 N DMA load cell (bridge circuit); Digital evaluation
Measuring range (force) max 100 N (200 N upon request)
Resolution 0.01 N
Clamping width of the sample up to 20 mm
Gauge length 0 mm up to 400 mm
resolution 0.01 mm
PC interface Serial standard interface RS232, 115200 Baud
Dimensions 71 x 50 x 27 cm
Weight 27 kg
Storage temperature 0 °C – 50 °C
Test temperature 15 °C – 30 °C
Relative humidity max. 80 %, non-condensing
Electrical connection VNG-E 110-240 V / 50 – 60 Hz, power consumption ca. 20 W, approx.
Electrical connection PC 110-240 V / 50 – 60 Hz, power consumption max. 350 W, approx.
Standard –
DIN 55543-5:2017-10 Packaging Test – Test methods for packaging films – Part 5: Determination of adhesion strength
55529:2012-09 Packaging – Determining the sealed-seam strength of sealings made of flexible packaging material
ISO 8295 Plastics – Film and sheeting – determination of coefficients of friction
DIN EN ISO 527-1 Determination of tensile properties (Part 1: General principles)
DIN EN ISO 527-3 Test conditions for films and sheets
