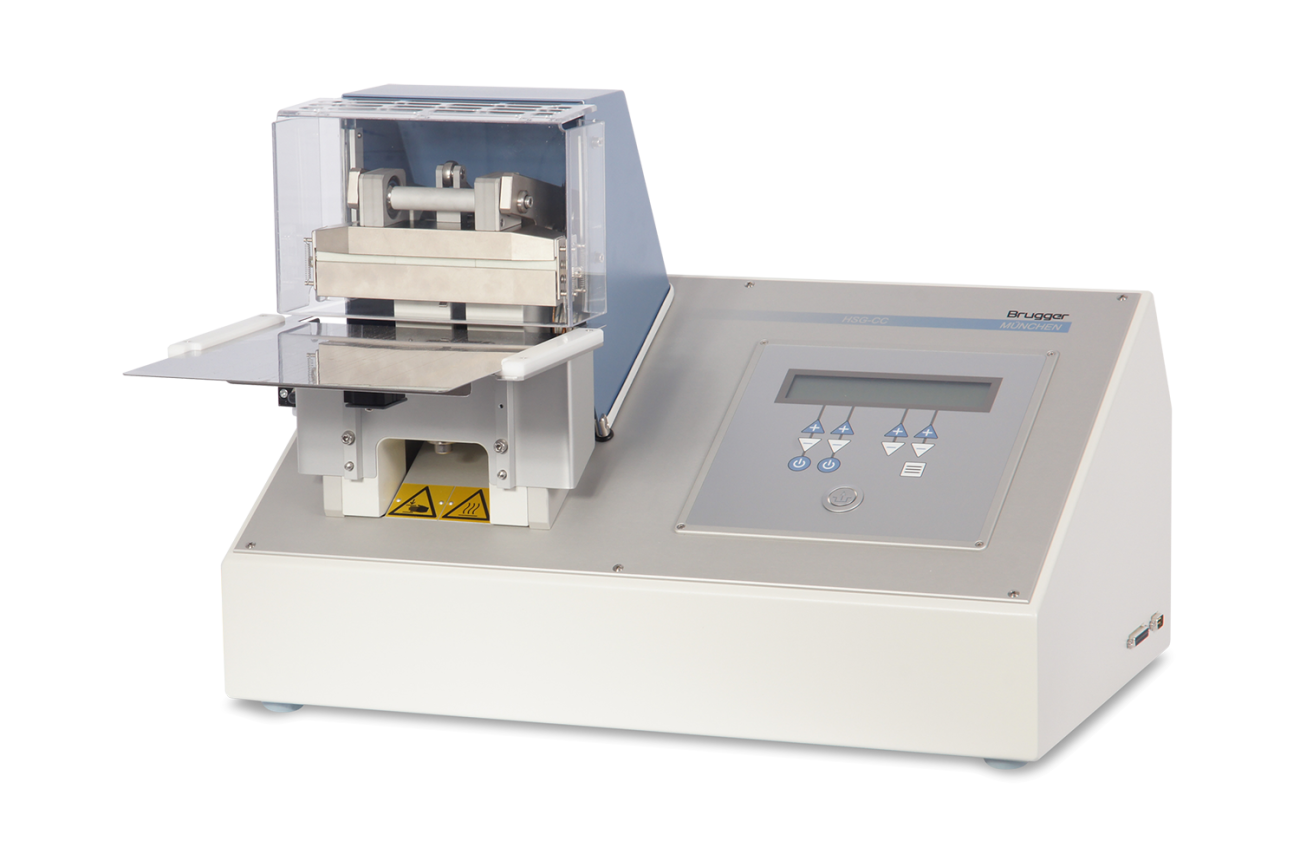

Heat-Sealing Machine HSG-CC

Category: Products / Brugger Feinmechanik

Detail_HSG-CC

Heat-Sealing Machine HSG-CC

is designed for testing the heat sealability of films. The pair of sealing jaws is easy to change and the temperature can be individually set.

  • Clear parameter view
  • Fast changeable sealing jaws
  • Easy to use
  • Long lifetime

How it works

The HSG-CC is designed for testing the heat sealability of varnished or coated films. The HSG-CC has a removable pair of sealing jaws which temperature may be individually set between ambient temperature and 300 °C. In addition, you may control the dwell time and the sealing force. The actual and set temperatures as well as the dwell time and sealing force are shown in the display. If your lab is not equipped with a compressed-air supply, use our special HSG-CC Compressor Version. You may wish to obtain our special software to evaluate the results for documentation purposes. For sealing jaws with a smooth surface the sealing pressure will be automatically calculated and displayed from the set sealing force. Test the seam strength of the sealed samples with our Universal Tensile Tester VNG-E. An optional Hot Tack Device can be obtained as an accessory. Also, an optional load cell enables you to adjust the force display any time. You may adjust the Temperature, Force and Time parameters with our newly developed HSG-P testing device.

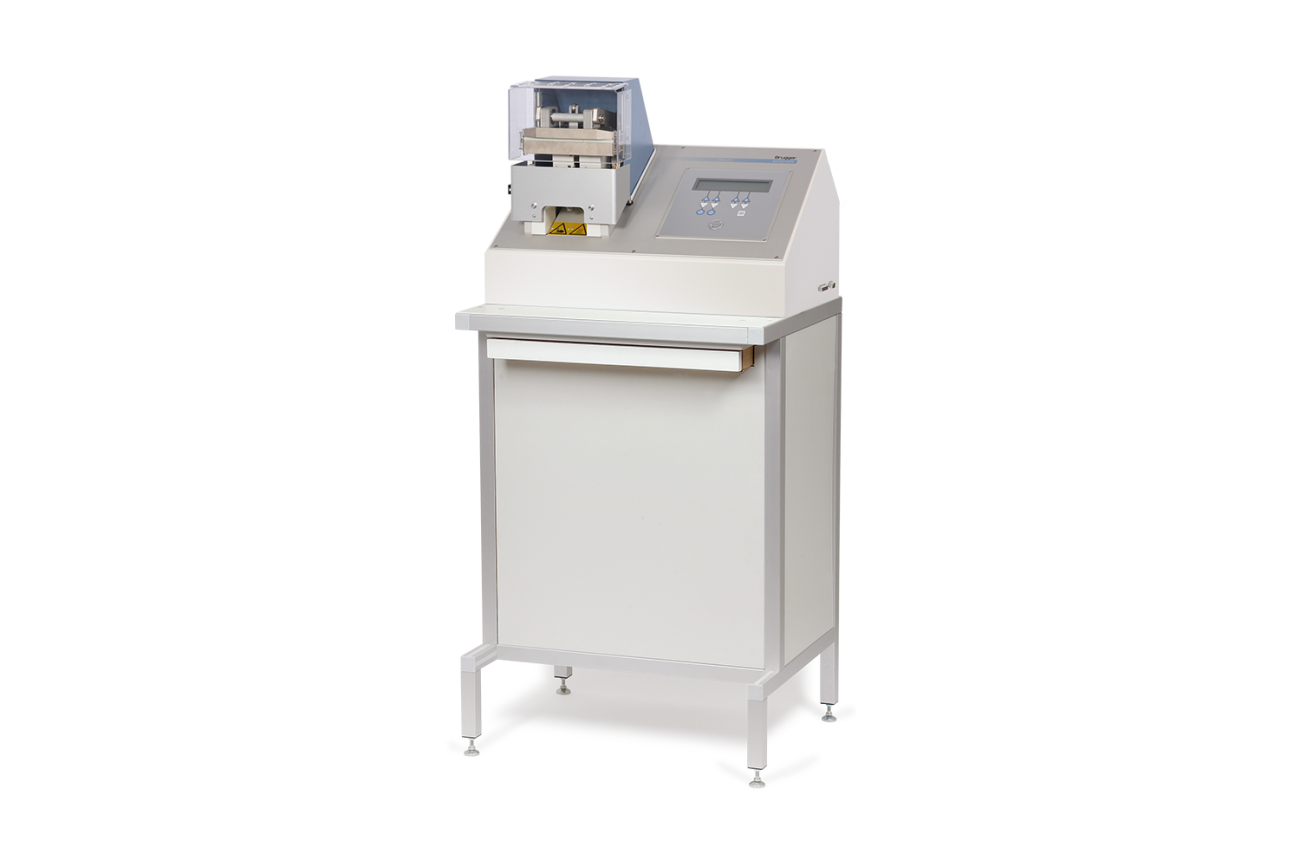

Standing device

The standing device has an integrated compressor and doesn’t need external compressed air.

  • Internal Compressor
  • No compressed air supply needed

Detail_HSG-CC_Stand



Technical Details

Test method Simulation of a head sealing equipment to determine the best sealing parameters
Compressed-air supply Table device: 6 bar to max. 10 bar | Standing device: N/A
Seal jaws 150 mm x 10 mm smooth(standard). Other specifications upon request Seal temperature
Sealing temperature Ambient temperature up to 300 °C
(can be controlled separately for upper and lower sealing jaw)
    Tolerance 1.5 °C + 1.0 %
Sealing force 40 N up to 1000 N for the entire sealing area
    Tolerance 10 N + 0.5 %
Dwell time 0.1 – 300.0 s
    Tolerance 0.1 s
PC interface serial standard interface RS232, 9.600 Baud
Interface for force adjustment Internal protocol
Dimensions Table device: 65 x 35 x 44 cm | Standing device: 68 x 48 x 125 cm
Weight Table device: 24 kg | Standing device: 76 kg
Storage temperature 0 °C – 50 °C
Working temperature 15 °C – 35 °C
Relative humidity max. 80 %, non-condensing
Electrical connection 230 V / 50 – 60Hz, Table device: max. 500 W | Standing device: 900 W
Standard Following ASTM F 2029 – 16
