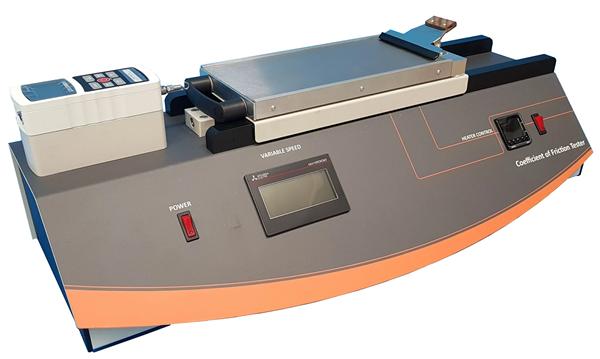

Coefficient of Friction Tester with Variable Speed & Heated Platen

Technical Specifications of Coefficient of Friction Tester with Variable Speed & Heated Platen

• Touch Screen Operation
• Force Range: 1-10N (1 x 0.001kgF)
• Friction Function: Static & Kinetic
• Speed: Variable between 50 - 300mm/min
• Sled Size: 63mm x 63mm
• Heated Plane: 150mm x 300mm (option to operate COF testing at ambient or heated temperature)
• Travel Distance: 220mm
• Communication: USB
• Cutting Templates Included: 1 x Sled, 1 x Moving Plane

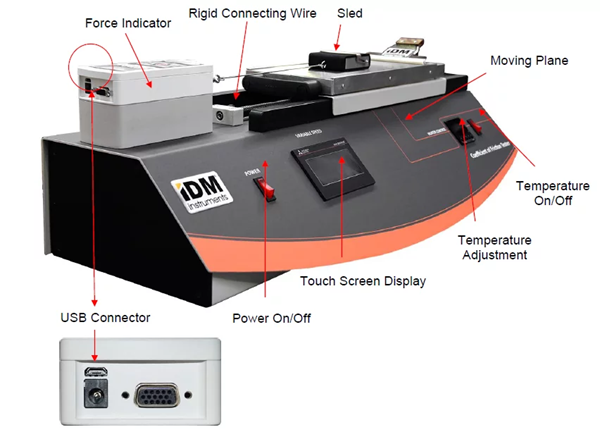

COF Tester with Variable Speed & Heated Platen Apparatus

COF Tester Software

The C0055 range also has the option of a computer software package to record data including:

• Dynamic real-time display
• Statistical analysis
• Results averaging
• Screen print out
• Data export to Excel
• Test identification entry
• Peak force value
• Static Point
• Kinetic average
• Adjustable data collection limits

Optional Features

• OP1: COF Data Acquisition Software (not available for rent)
• OP2: 180° Peel Fixture Rod C0055-SP1: Updated COF Software (only if C0055-OP1 has been previously purchased)
• OP3: Cutting Template for Cartonboard
• SP2: IDM Interface Cable
• SP3: Cutting Template for Sled: 63.5mm x 63.5mm
• SP4: Cutting Template for Moving Plane
• SP5: Solid Connecting Rod
• SP6: COF Sled 200g
• SP7: Spare Stainless Steel Plane Surface

COF Test Definitions

• Friction: the resisting force that arises when a surface of one substance slides, or tends to slide, over an adjoining surface of itself or another substance. Between surfaces of solids in contact there may be two kinds of friction:

  1. the resistance opposing the force required to start to move one surface over another known as static friction,
  2. the resistance opposing the force to move one surface over another at a variable, fixed, or predetermined speed known as dynamic friction.

• Slip: the lubricity of two surfaces sliding in contact with each other. In effect, it is the exact opposite of friction, in that high coefficient of friction denotes low slip and low coefficient of friction denotes high slip.
• Coefficient of friction: (COF) the ratio of the frictional force resisting movement of the surface being tested to the force applied normal to that surface (the weight of the material above that surface)
• Coefficient of static (or starting) friction: the ratio of the force resisting initial motion of the surfaces, to the normal force.
• Coefficient of kinetic (or sliding) friction: the ratio of the force required to sustain the uniform relative movement of the surfaces, to the normal force.
• Normal force: the force acting perpendicular to the surfaces in contact.

Test A: Single-Coated Tapes, Peel Adhesion at 180° Angle

A strip of tape is applied to a standard test panel (or other surface of interest) with controlled pressure. The tape is peeled from the panel at 180° angle at a specified rate, during which time the force required to effect peel is measured.

Test B: Adhesion to Backing, Single-Coated Tapes

A strip of the tape under test is applied to a rigid panel. A strip of the tape under test is applied to the backing of the first strip of tape and tested for peel adhesion as described in Test Method A.

Test C: Double-Coated Tapes

1. Face Side Adhesion - The double-coated tape is adhered to a stainless steel panel (or other surface of interest), liner side up. The liner is removed and the exposed adhesive covered with a strip of 0.025-mm [0.001-in.] thick polyester film. The resulting tape is then tested as described in Test Method A.
2. Liner Side Adhesion - The face side adhesive is adhered to a 0.025-mm [0.001-in.] polyester film. The liner is removed and the tape is applied adhesive down to a stainless steel panel (or other surface of interest). Testing is conducted as described in Test Method A.

Test D: Adhesion to Liner

The tape is adhered to a standard steel test panel with the liner side up. The liner is peeled from the adhesive in the same manner as in peeling a single-coated tape from a standard panel as described in Test Method A.

Test E: Adhesion of Adhesive Transfer Tapes

1. Face Side - The tape is adhered to a standard panel (or other surface of interest). The liner is removed and a 0.025-mm [0.001-in.] thick strip of polyester is adhered to form a film-backed strip of tape. The adhesion is measured as de- scribed in Test Method A.
2. Linear Side - The transfer tape is applied to a strip of 0.025-mm [0.001-in.] thick polyester film, the liner is removed and the resulting tape’s adhesion is measured as described in Test Method A.
